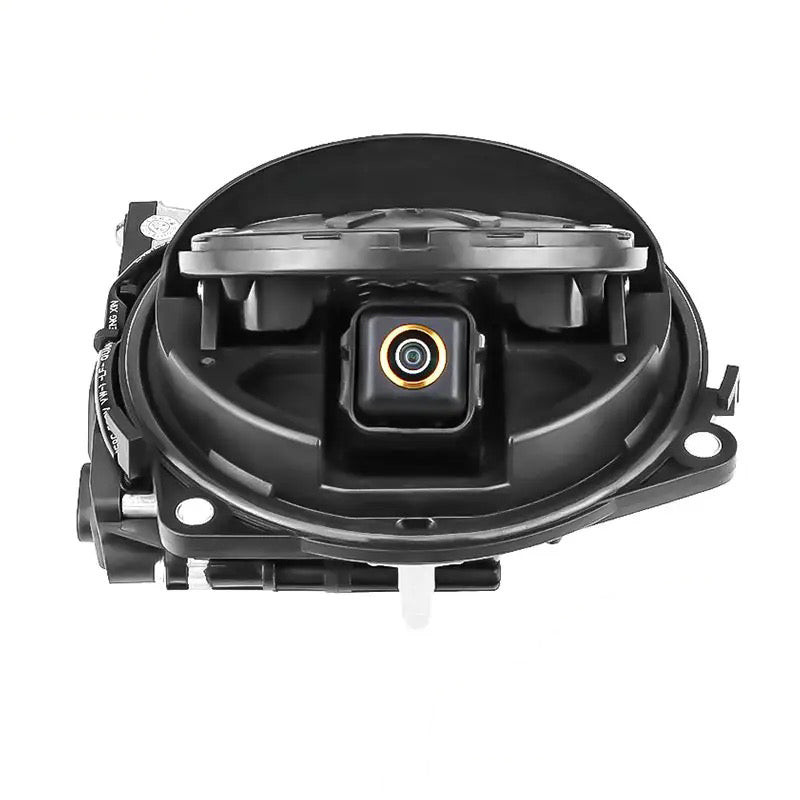

  • VW flip badge camera open showing reversing camera lens
  • VW badge reversing camera for Golf, Passat and Polo

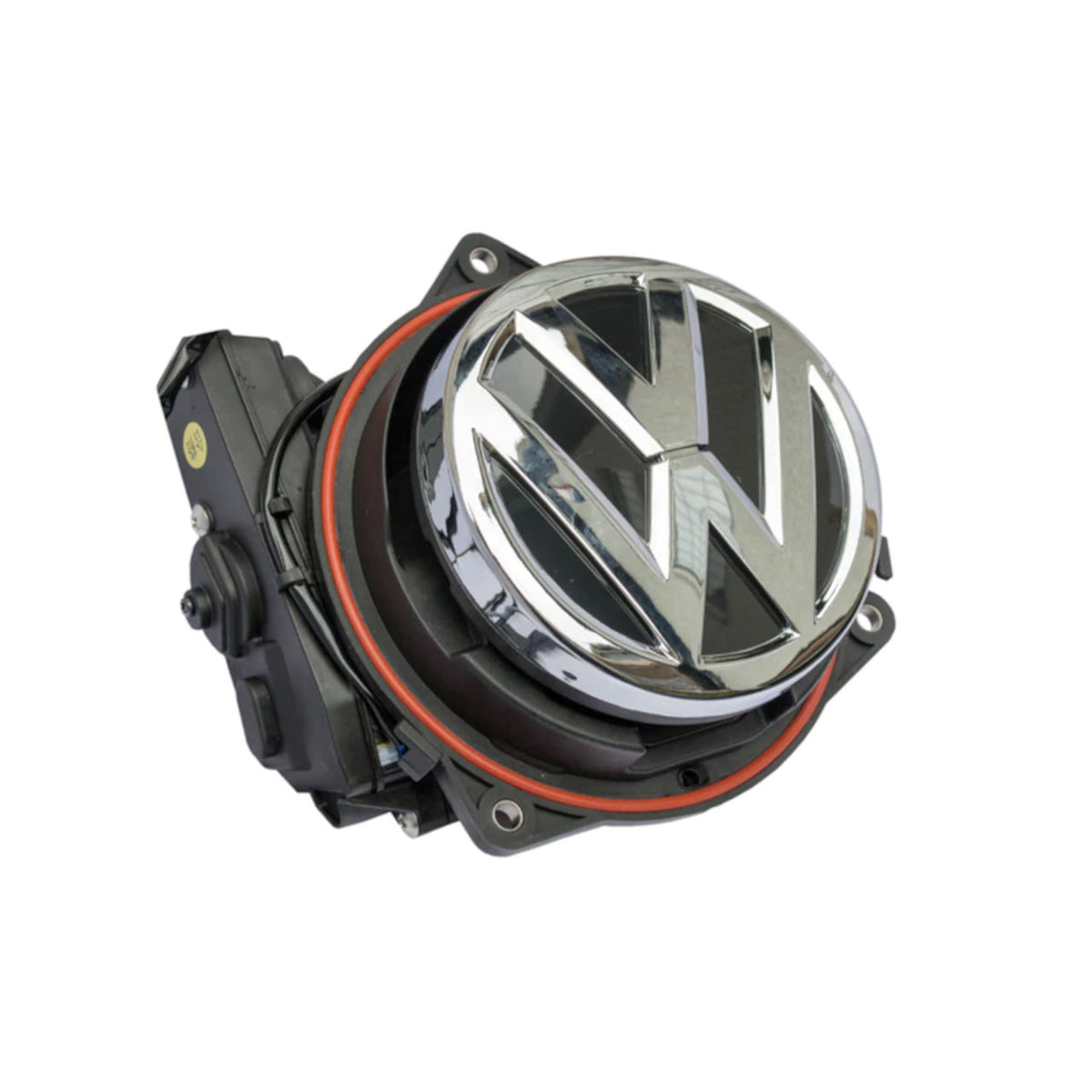

  • VW rear emblem flip camera kit

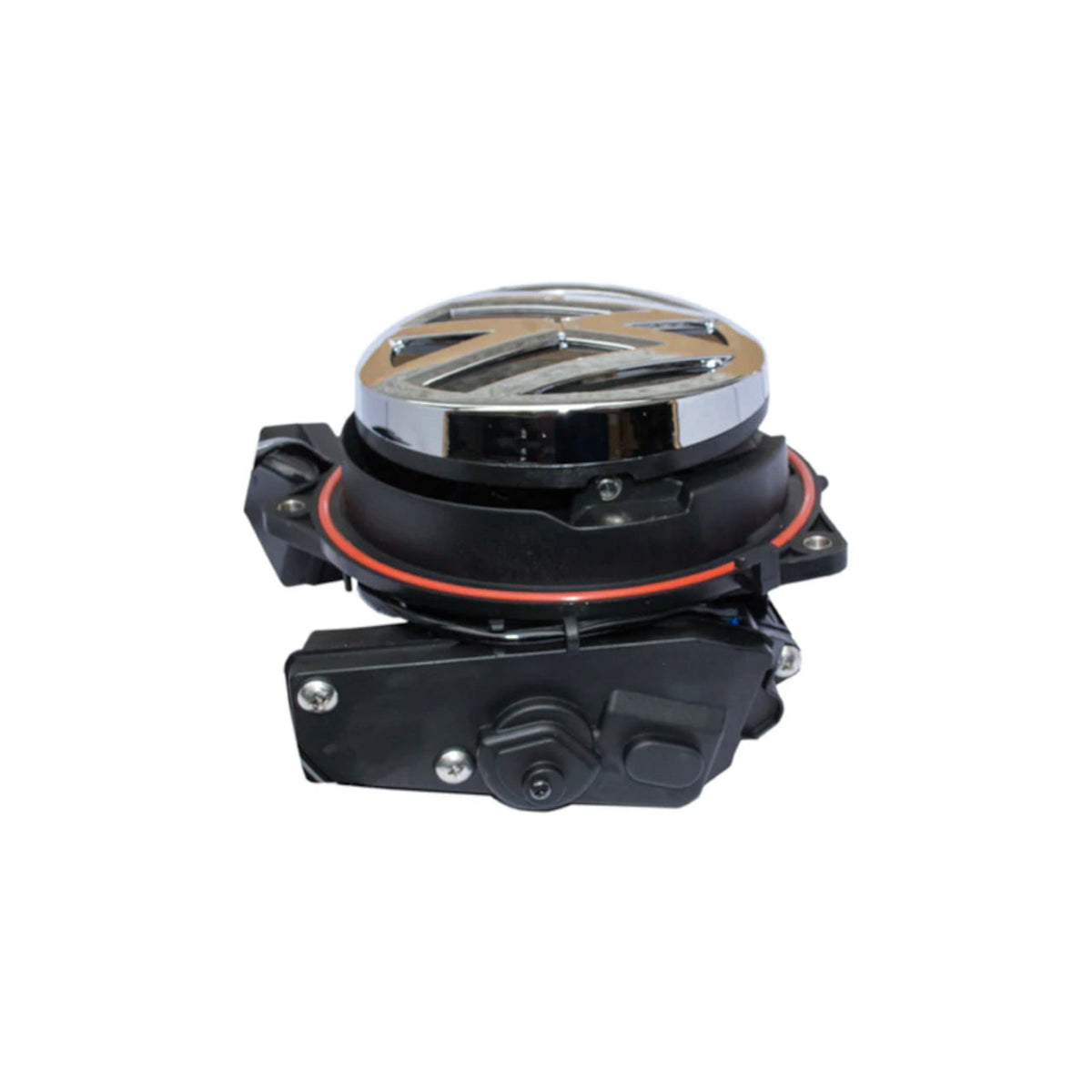

  • VW flip badge reversing camera wiring and MIB adapter

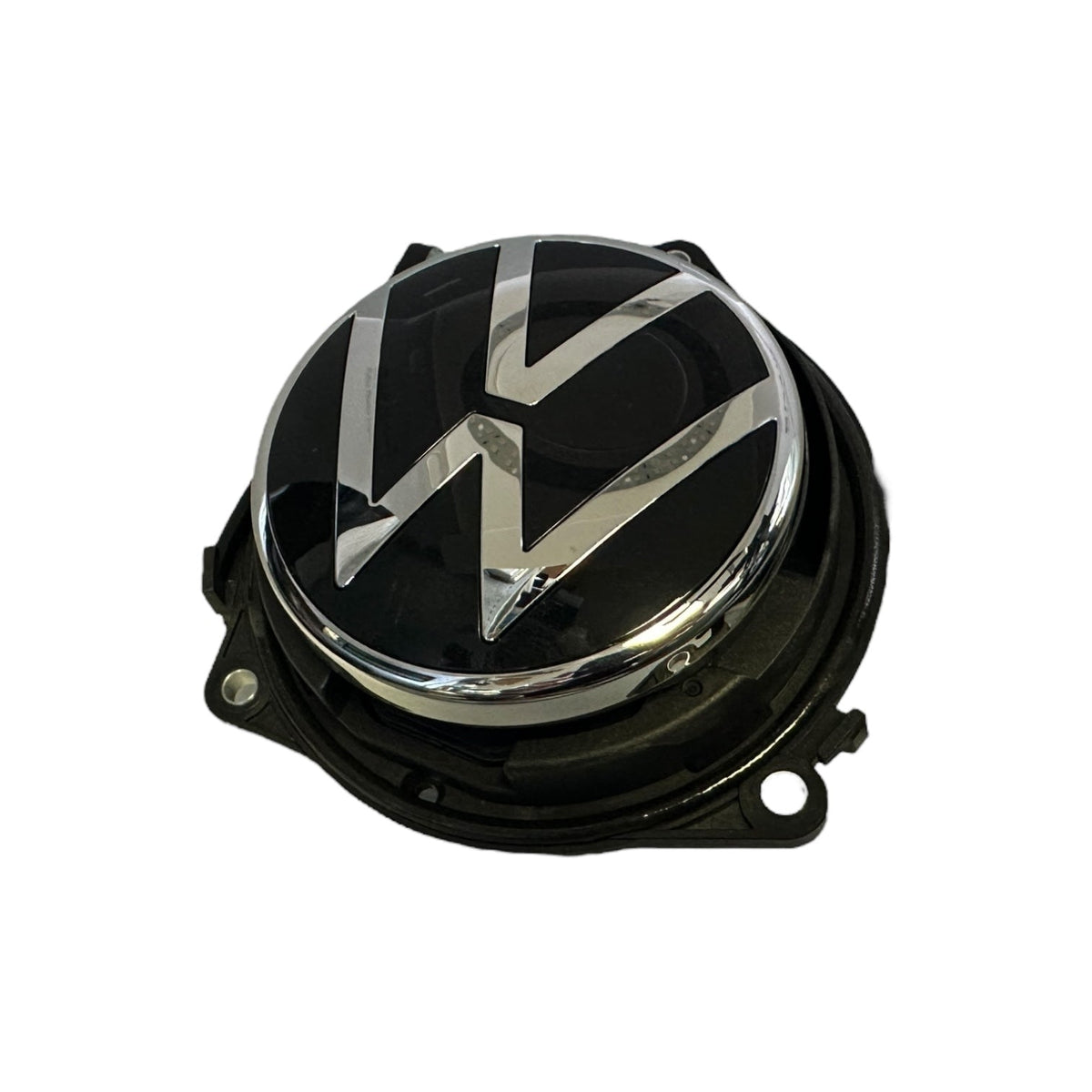

  • VW flip badge reversing camera fitted to car

VW Motorised Flip Badge Reversing Camera | Golf, Passat, Polo, T-Roc, Arteon & Beetle

VW Motorised Flip Badge Reversing Camera | Golf, Passat, Polo, T-Roc, Arteon & Beetle

Vehicle
Installation Service
Connection
£175.00
£175.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Professional fitting at 10 UK locations
  • Rated and reviewed

Question about this product?

We're happy to help.

Overview

A reversing camera you'll never see until you need it. It hides behind your rear VW badge, flips out the moment you select reverse and tucks away again after. Plug it into your VEEHIVE CarPlay module for a simple connection with no coding, or run it to your factory screen with the OEM MIB adapter.

  • Fits Golf MK5 to MK8, Passat, Polo, T-Roc, Arteon & Beetle
  • No adapter or coding when connected to a VEEHIVE module
  • Factory screen option with OEM MIB adapter (+£25, plus coding from £100)
  • 155° view with switchable parking guidelines
  • Uses your original VW badge, so it matches your car perfectly
  • No drilling, fits in place of your existing badge unit
  • Supplied or fitted anywhere in the UK

VW Flip Badge Reversing Camera | Supplied or Fitted by VEEHIVE (UK)

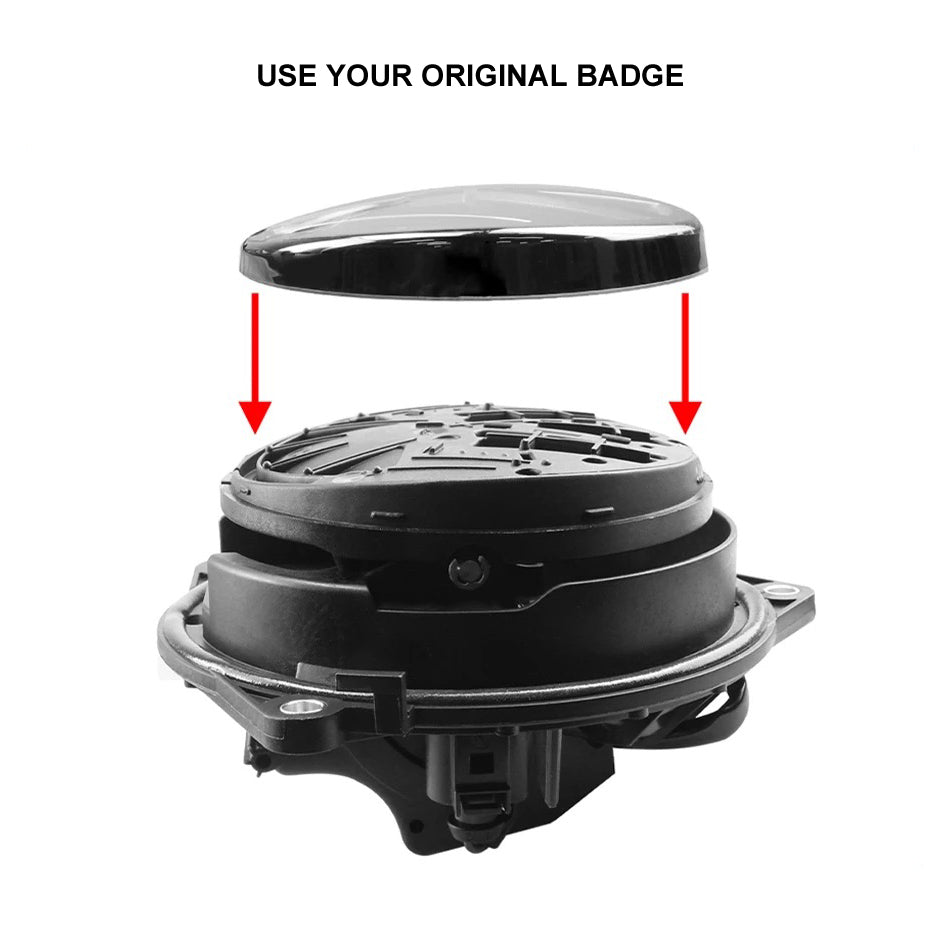

Most reversing cameras are a bolt-on afterthought. This one keeps your VW looking standard. Your original VW badge moves across onto the camera unit, so closed it looks exactly the same as before. In reverse, it opens up and gives you a clear wide view behind the car. Because the lens is tucked away the rest of the time, it stays clean and protected from rain and road muck.

Please note: this is a quality aftermarket camera, not a genuine VW part.

How It Connects

VEEHIVE module (recommended) Plugs into any of our modules with a video input: CarPlay & Android Auto modules, entertainment modules and camera-only modules. No adapter. No coding.
Factory VW screen Needs the OEM MIB adapter (+£25) and coding (£100 to £150 depending on vehicle). Send us your reg for an exact price.

Which Version Do I Need?

The badge shape varies between models, so pick the one that matches your car:

  • Golf MK7 / MK7.5 (2013-2020)
  • Golf MK8 / 2021+ Smooth Badge: Golf MK8, plus 2021-on Passat, Arteon, T-Roc, Beetle and Polo AW with the smooth badge
  • Golf MK5 / MK6, Passat & Pre-2021: Golf MK5 & MK6, Passat B6 / B7 / B8 and CC, plus pre-2021 Arteon, T-Roc, Beetle and Polo AW with the older badge
  • Polo 6R / 6C: includes its own mounting bracket

Not sure? Choose "I'm not sure" or send us your reg and we'll match it for you.

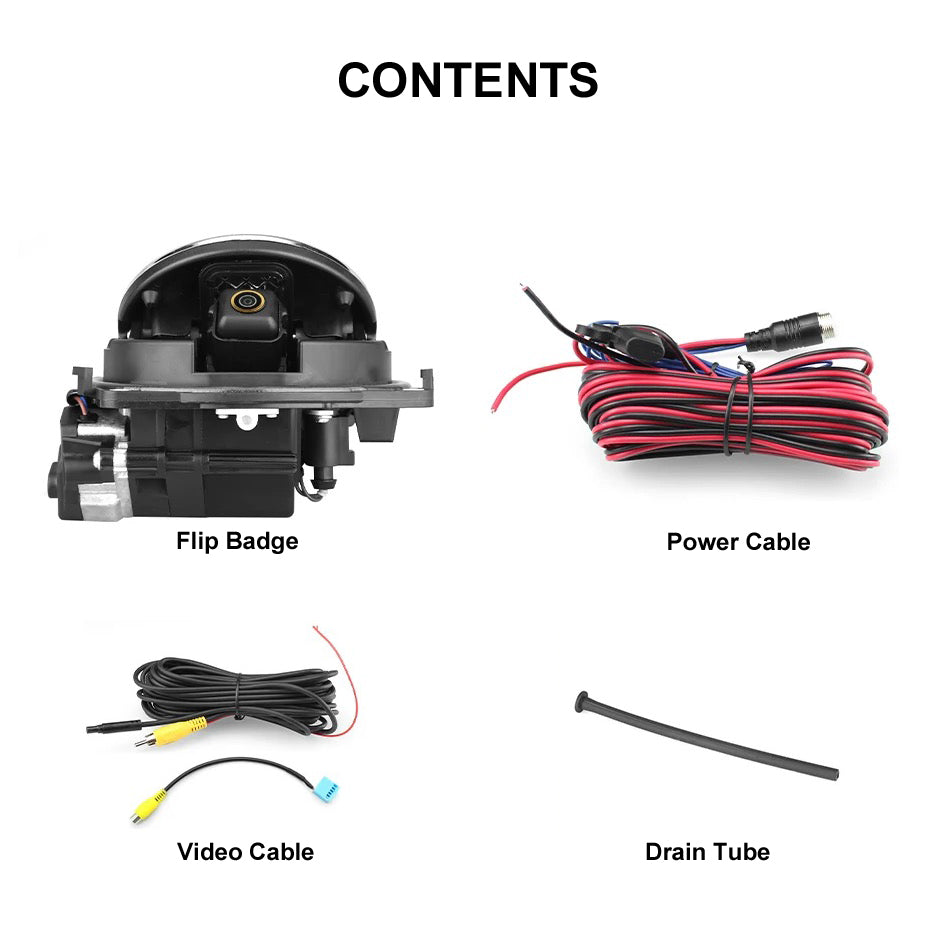

What's Included

  • Flip badge camera unit (fits your original VW badge)
  • Video cable (6m) with reverse trigger
  • Power cable
  • Drain tube
  • OEM MIB adapter (if selected)

Your original VW badge is transferred onto the new unit. A badge is not supplied.

Fitting

Fitted: we move your badge across, fit the unit, route the cable neatly, connect it up and test it with you before you go. Having a VEEHIVE CarPlay module fitted too? We'll do both in one visit.

Parts only: you'll need trim tools and some wiring knowledge. If you're using the MIB adapter, the car will also need coding.

Book a VEEHIVE Approved Fitter. UK-wide coverage.

Technical Specifications

Type Motorised flip badge camera (aftermarket)
Viewing Angle 155°
Guidelines Fixed, switchable on / off
Video Output CVBS (NTSC)
Power 12V
Cable 6m with reverse trigger
Badge Uses your original VW badge
Coding Not needed with VEEHIVE modules. Required with MIB adapter (£100 to £150 depending on vehicle)

FAQs

I already have a VEEHIVE CarPlay module. Will it work?

Yes. If your module has a video input, the camera plugs straight in. No adapter or coding needed.

Can it go on my original VW screen?

Yes, with the OEM MIB adapter (+£25). It also needs coding, which is £100 to £150 depending on your vehicle.

Does it come with a VW badge?

No. Your original badge moves across onto the camera unit, so it matches the rest of your car.

Is it a genuine VW part?

No, it's aftermarket. Same flip badge look for a fraction of the dealer price.

Important Notes

  • Aftermarket camera, not a genuine VW part.
  • Your original VW badge is reused. A badge is not supplied.
  • OEM MIB adapter is +£25. Coding is £100 to £150 depending on vehicle and is paid separately.
  • Some cars need an extra relay for a stable power feed (not included).
  • Golf MK5 fitting needs light trimming near the rear wiper motor.
  • By ordering, you agree to our Terms & Conditions.

VEEHIVE | Retrofit Specialists. UK-wide fitting, fast dispatch, expert aftersales support. Visit our Aftersales page for setup help.

Keywords: VW flip badge reversing camera, VW badge camera UK, Golf MK7 reversing camera, Golf MK8 badge camera, Passat reversing camera, Polo badge camera, T-Roc reversing camera, VW CarPlay reverse camera, VW camera fitted UK, VEEHIVE VW camera

VW Motorised Flip Badge Reversing Camera | Golf, Passat, Polo, T-Roc, Arteon & Beetle

£175.00

Does it come with a warranty?

Warranty terms vary depending on the product. This warranty does not cover incorrect installation, physical damage, misuse or modification, water damage, or any interference caused by third parties. All warranty claims must include supporting evidence such as photos or videos for review.

What happens if I don't like it?

If you don’t like your item, you may request a return within 14 days of delivery, as long as it is unused, uninstalled, in original packaging, and in resalable condition. Return shipping is your responsibility and restocking fees apply. Custom or vehicle-specific products cannot be returned unless faulty or incorrect.

How fast is shipping?

Shipping speed depends on the product. In-stock UK items usually arrive within 1 to 3 working days. Standard items typically arrive within 3 to 10 working days. Built-to-order or vehicle-specific products may take up to 2 weeks or longer. All timeframes include processing, preparation, and shipping time.

What's the returns policy?

Return requests must be submitted within 14 days of delivery. Items must be unused, uninstalled, in original packaging, complete, and in resalable condition. Return shipping is the customer’s responsibility and tracked postage is recommended. Custom or vehicle-specific items cannot be returned unless faulty or incorrect. Restocking fees apply to eligible change-of-mind returns.
